Print Both Sides At High Speed

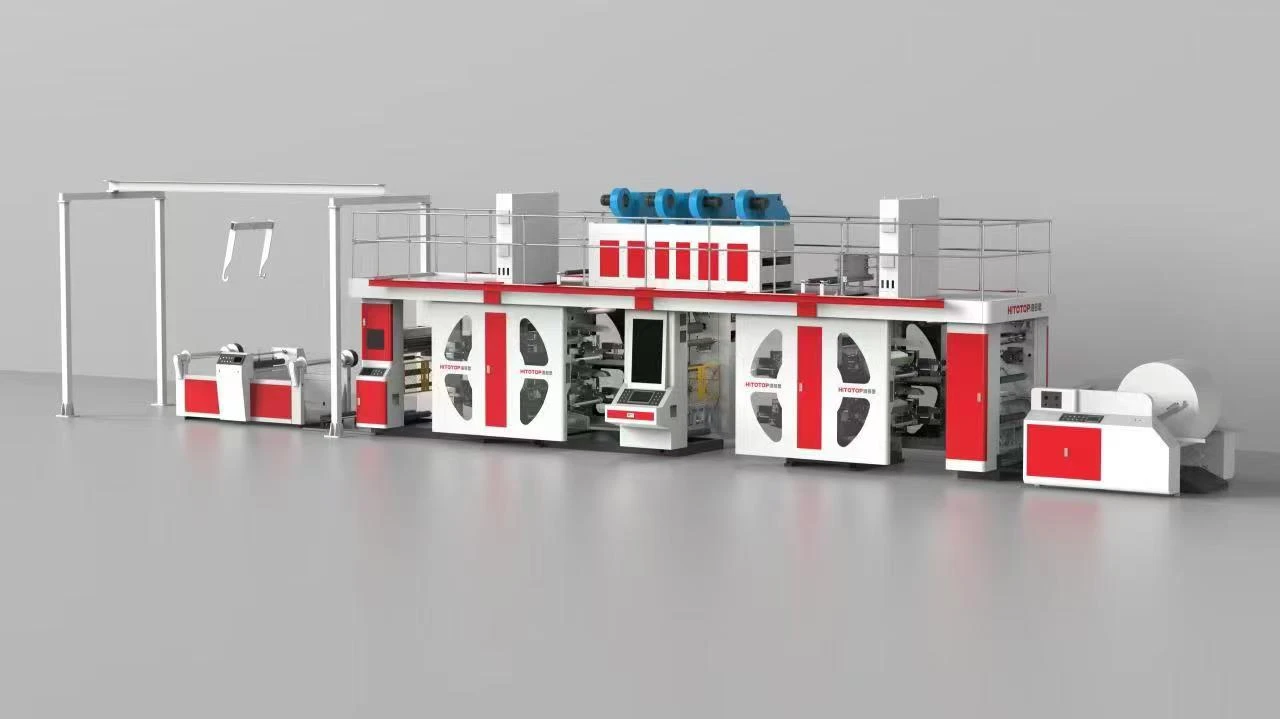

Our CI Flexographic Printing Press uses a 6+6 body structure. It prints on the front and back at the same time. You can print up to 12 colors in one pass. The material wraps tightly around a large central drum. This gives you very stable tension. Even at 250 m/min, the print stays accurate. The register error is only ±0.15 mm. This CI Flexographic Printing Press is a good choice for high-end valve bags and heavy-duty bags. It also works for FFS heavy-duty film.

Technical Specifications

Parameter	Value
Max Mechanical Speed	250 m/min
Print Width Range	800 – 1600 mm (customizable)
Substrate Range	50 – 150 g/m² woven fabric, film
Max Number Of Colors	12 (6+6 front and back)
Register Accuracy	±0.15 mm
Drying System	High-power UV curing
Drive System	Independent servo motors

Why HITOTOP For Your CI Flexographic Printing Press

HITOTOP is a national high-tech company. We are also a certified "Specialized and Sophisticated" SME. We have over 20 years of experience. Our factory follows ISO9001 standards. Every CI Flexographic Printing Press is made with precision CNC machining. This gives you long-term stability. We also offer 1-to-1 customization. You can choose the print width. You can also upgrade the drying system. We help you match the press to your exact production needs. Our clients include Conch Cement and Shanshui Group. They trust our CI Flexographic Printing Press for stable output.
